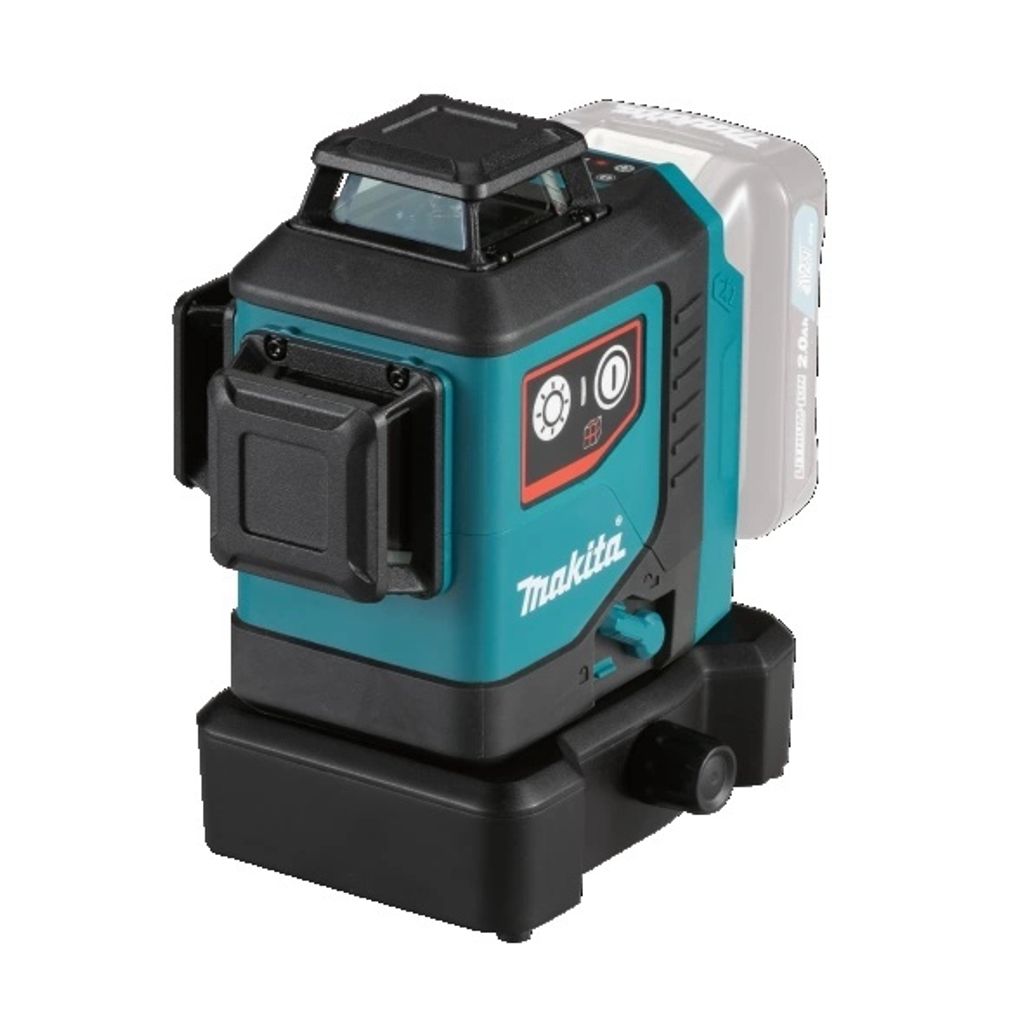

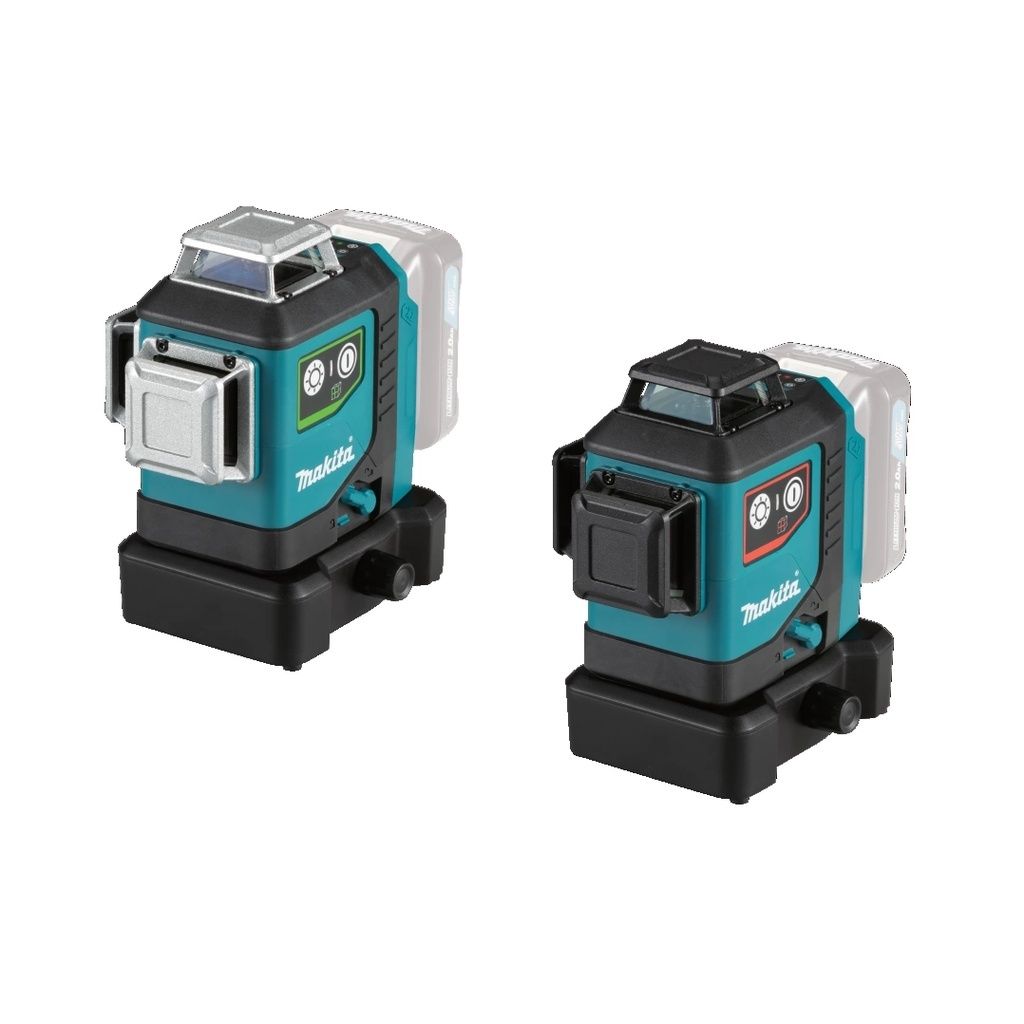

Makita 12Vmax Rechargeable Multi Line Laser ( SK700D / SK700GD )

- Rotary base with eccentric rotation mechanism reduces setup time; Vertical laser lines can rotate around thedefined
plumb point up to 10° left and right (with a dial for fine adjustment); Eccentric rotation mechanismenables the laser
body to rotate without changing the position of the defined plumb point, enabling easy linepositioning

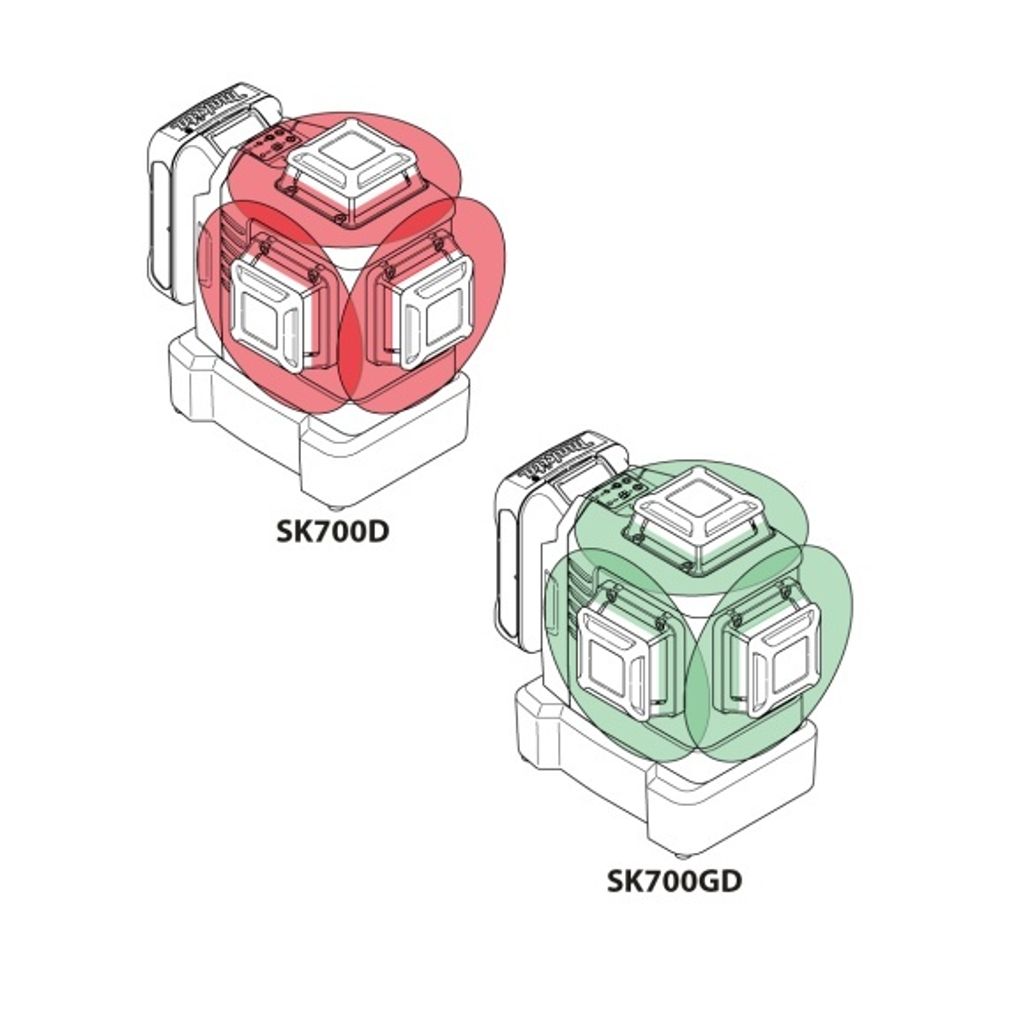

- Three full 360-degree lines can be projected
- Full 360-degree line is created by letting the laser from a light source reflect on a cone mirror
- 4 Horizontal lines & 4 Vertical lines
- High accuracy +/-2 mm @ 10 m
- Indication method: Automatic vertical line indication by gimbal mechanism*¹
- Control method: Magnet damper method control

Leveling Accuracy : ±2mm/ 10m
Self-Leveling Range : ±4°
Laser Type : Laser class 2: 510 - 530 nm
Protection Class : IP54
Dimensions (L x W x H) : 149 x 104 x 153 mm (5-7/8 x 4-1/8 x 6")
Net Weight : 0.99 - 1.2 kg (2.2 - 2.7 lbs.)
Continuous Usage Time : 14 hrs with BL1041B
(Max Brightness Mode)

SK700D :
- Laser Type : Laser class 2: 510 - 530 nm
- Continuous Usage Time : 14 hrs with BL1041B
(Max Brightness Mode)

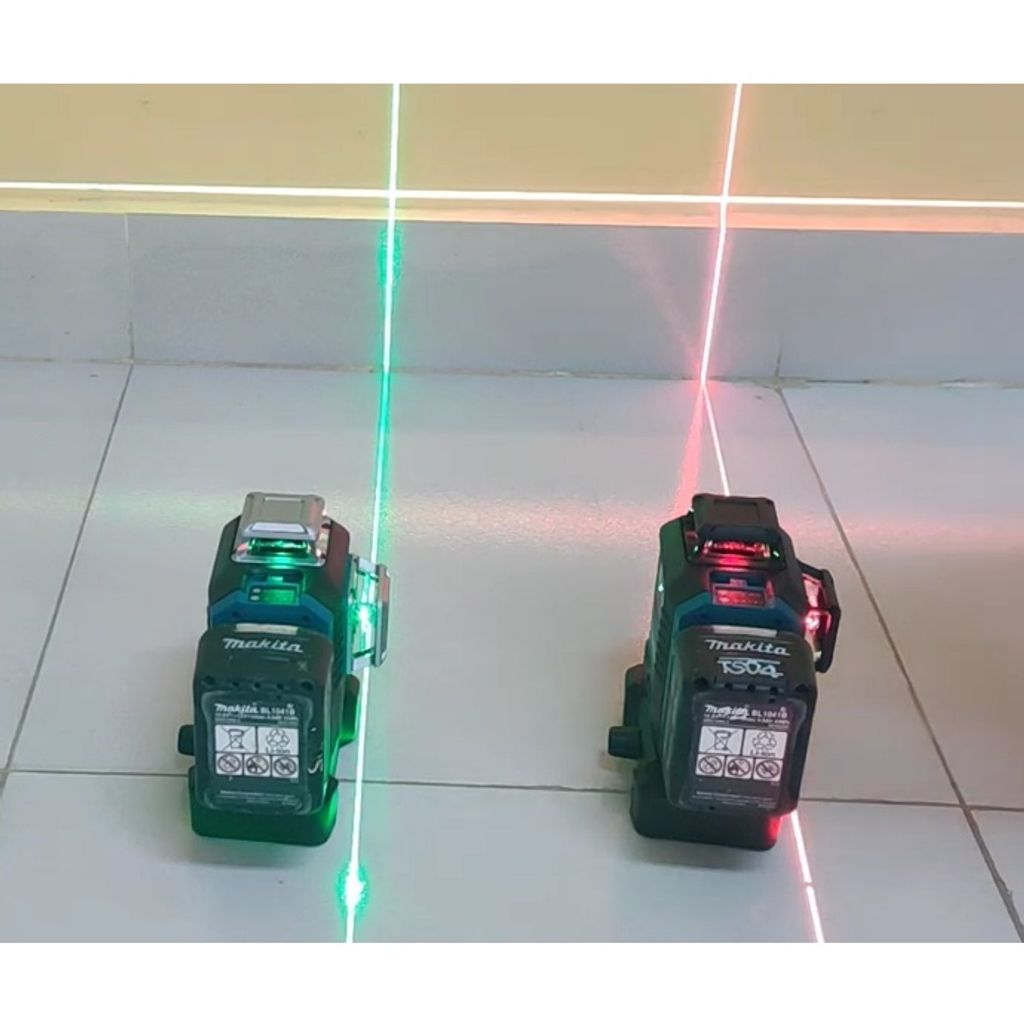

SK700GD :
- Even high power-consuming green laser lines can keep being projected over a long continuous operation
- High brightness green laser for increased visibility in outdoor or bright job sites
- Laser Type : Laser class 2: 630 - 645 nm
- Continuous Usage Time : 22 hrs with BL1041B
(Max Brightness Mode)
