BOSCH GLM100-25C / GLM10025C LASER MEASURE

GLM100-25C PROFESSIONAL
LASER MEASURE
(1 YEAR WARRANTY)

Precise laser measure for easy indoor and outdoor measuring and
documenting
Accurate, 100-m laser measuring thanks to digital camera viewfinder with
zoom function
Large, high-contrast IPS colour display with flip screen ensures optimal
reading
Laser measure connects via Bluetooth for efficient data documentation

GLM 100-25 C PROFESSIONAL: FURTHER INFORMATION
Product Highlights

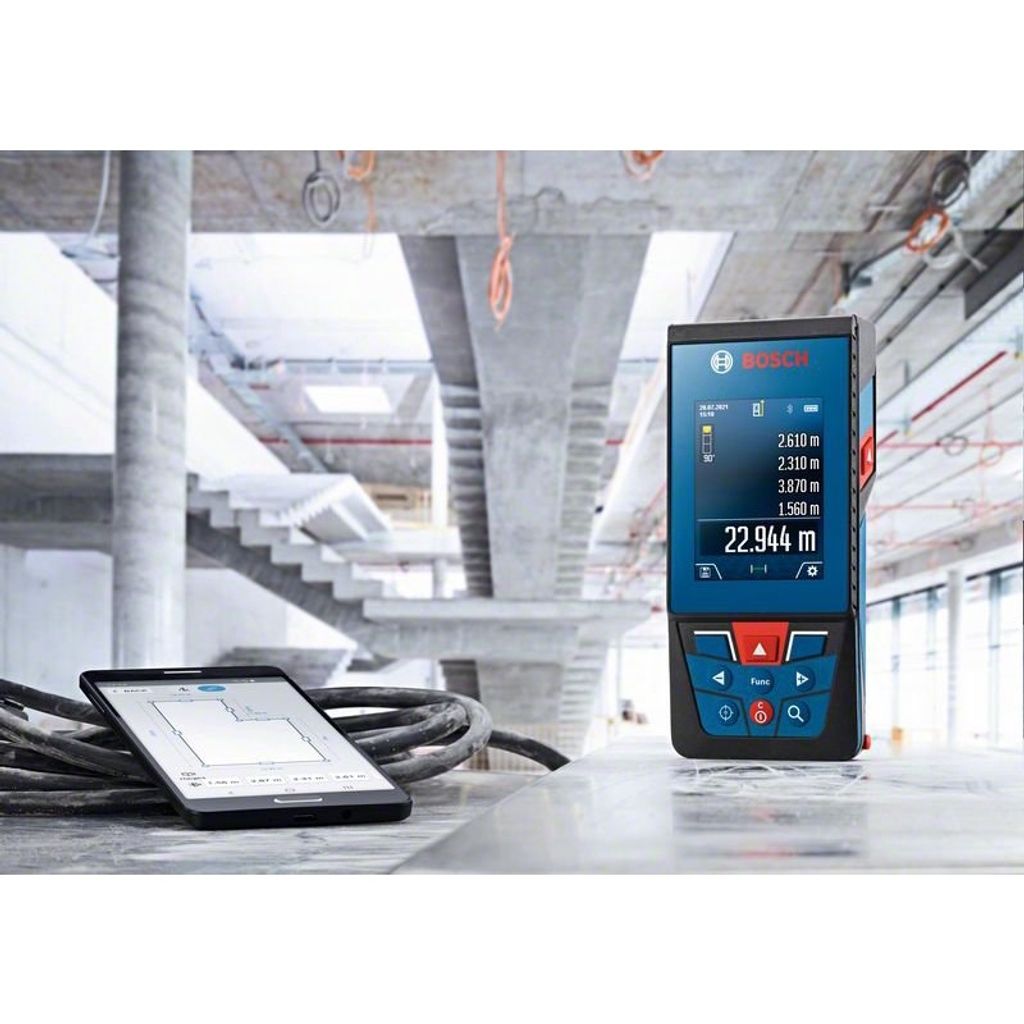

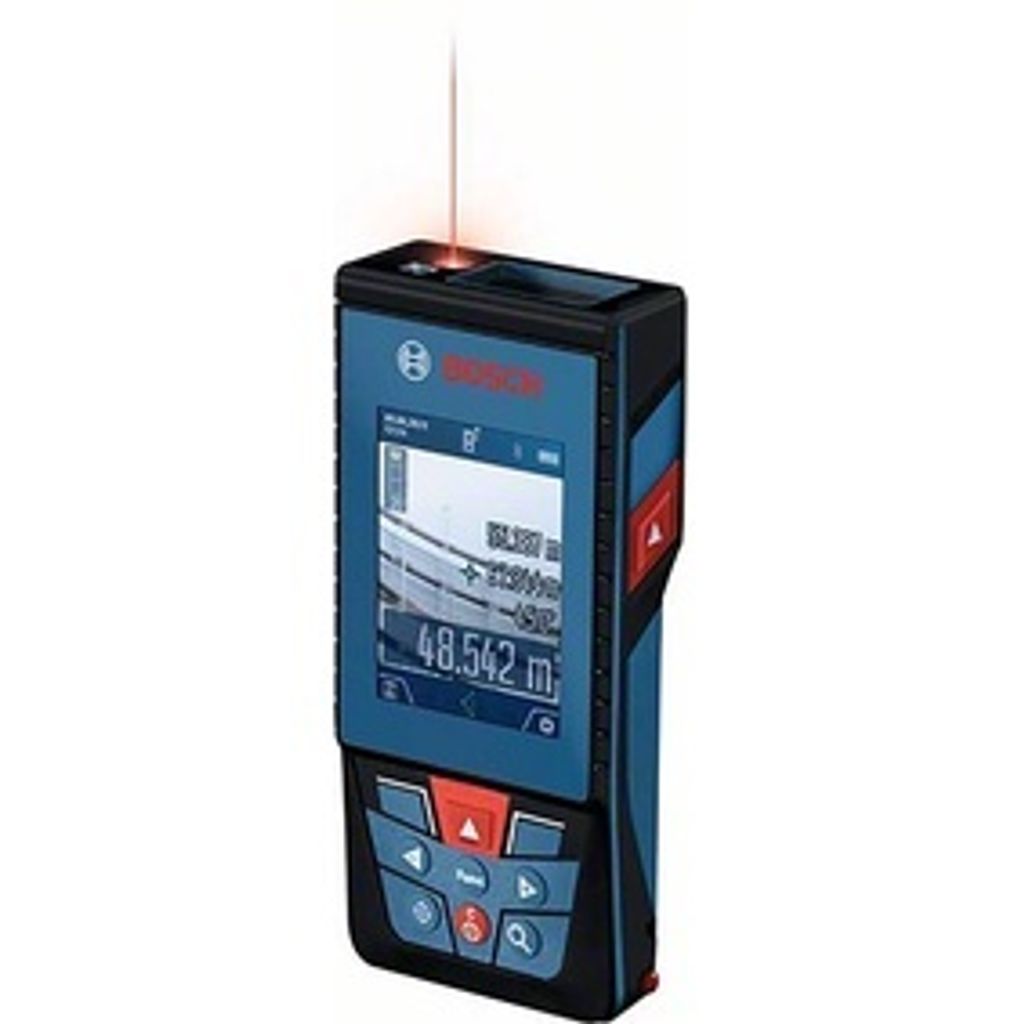

This professional outdoor laser measure features a digital camera viewfinder
with a zoom function that precisely measures distances up to 100 m. The
camera picture and measurements are easy to see on the big, high-contrast,
2.8” IPS colour display, which rotates for portrait or landscape view.
For convenient documentation, measurement results can be transferred via
Bluetooth to the Bosch MeasureOn App. This laser measure is the ideal solution
for tough job sites thanks to IP54 dust and water protection, and scratch-
resistant display glass.

Equipment & Application
Architects, construction managers, and electricians will appreciate the outdoor
capability, easy readability, and convenient documentation of this robust laser
measure.

Additional Information
The GLM 100-25 C Professional has a user-friendly HMI interface with a click
Wheel for access to all features. A useful help option displays detailed images
of each measuring function for easy comprehension.


TECHNICAL DATA


The most important data
Laser diode : 650 nm, < 1 mW
Measurement range* : 0.08 – 100.00 m
Laser class : 2

Measurement accuracy, typical* :± 1.5 mm* (*plus use-dependent deviation)
Measurement range of incline measurement : 0 – 360° (4 x 90°)
Measuring accuracy (typical)* :± 0.2°* (*plus use-dependent deviation)

Measurement time, typical : < 0.5 s
Measurement time, max. :4 s
Power supply : 3 x 1.5 V LR6 (AA)
Automatic deactivation : 5 min
Weight, approx.** : 0.23 kg
Units of measurement : m/cm/mm/ft/inch/ft-inch
Memory capacity (values) :50
Dust and splash protection : IP 54

Tripod thread : 1/4"
Digital viewfinder : integrated
Data transfer : Bluetooth™ 4.2 Low Energy
Laser colour : Red
_______________________________________
WHAT'S IN THE BOX:
1x GLM100-25C LASER MEASURE
1x PROTECTIVE BAG
3x 1.5 V LR6 BATTERY (AA)
